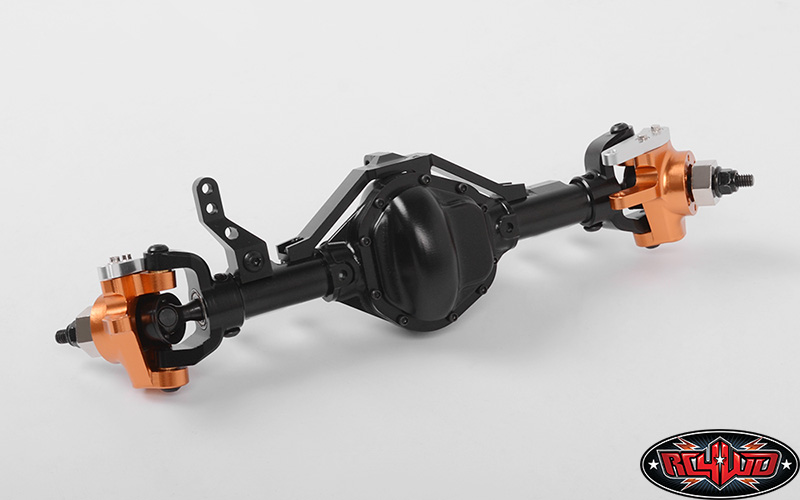

RC4WD D44 Narrow Front Axle (SCX10 Width)

Art.Nr.:
Z-A0114
Lieferzeit:
nicht lagernd nicht lagernd (Ausland abweichend)
299,90 EUR
inkl. 19% MwSt. zzgl. Versand

 RC4WD D44 Narrow Front Axle (SCX10 Width)

http://www.beadlok.com/product/images/626/D44%20Axles_Text%20White.jpg
The all new D44 Axles are built just for the SCX10 series of trucks from Axial that use the AX10 Axles. These axles are a complete bolt in for trucks that use the AX10 Axles. They pack tons of features including XVD's, hardened steel gears, panhard bar setup and more. This axle allows you to get the steering servo off the axle and onto the chassis when paired with our CMS kit. Offers same gear ratio as the stock AX10 Axles.



Specifications:

  • Billet Aluminum
  • CNC Machined
  • Anodized Black
  • Removable Diff Cover
  • Panhard Bar Mount Built In
  • Modular System to Allow for Conversions
  • Heavy Duty Bevel Gear Set 38T/13T
  • 12mm Steel Wheel Hex
  • 5mm Axle Output Shaft
  • Weight: 9oz / 255g
  • Engineered and Manufactured by RC4WD













Shown installed with Rock Hard 4x4 Full Width Front Bumper for Axial SCX10 Jeep (Z-S1338), Axial SCX10 Jeep Rubicon, D44 Link Set for SCX10 CMS (SCX10 Width) (Z-S1072) and Chassis Mounted Steering Servo Kit with Panhard Bar for Axial SCX10 (Z-S0923) for example (Not Included)





What's Included:

  • 1x RC4WD D44 Narrow Front Axle (SCX10 Width)
  • 2x 2mm Black Spacer (Z-S0600)
  • 2x 1mm Black Spacer (Z-S0809)

Other D44 Axles:
  • RC4WD D44 Wide Rear Axle (Wraith/AR60 Width) (Z-A0108)
  • RC4WD D44 Narrow Rear Axle (SCX10 Width) (Z-A0112)
  • RC4WD D44 Wide Front Axle (Wraith/AR60 Width) (Z-A0110)

Require Parts:
  • D44 Link Set for SCX10 CMS (SCX10 Width) (Z-S1072)
  • Chassis Mounted Steering Servo Kit with Panhard Bar for Axial SCX10 (Z-S0923)

Optional Parts:

  • RC4WD Ballistic Fabrications D44 Axle Cover (Z-S1600)
  • ARB Diff Cover for D44 Axle (Z-S1607)

Replacement Parts:
  • Heavy Duty Bevel Gear Set 38T/13T (Z-G0069)
  • D44 Steering Knuckles (Z-S0955)
  • D44 Narrow Front Axle Upper Link Mount (SCX10 Width) (Z-S1024)
  • D44 Panhard Mount for SCX10 CMS (SCX10 Width) (Z-S1071)
  • XVD Axle Shafts for D44 Narrow Front Axle (SCX10 Width) (Z-S0989)
  • 2x RC4WD 12mm Axle Wheel Hexes (2 way) (Z-S0238)
  • 2x Replacement Axle Hex Pins (12) (Z-S0277)
  • Heavy Duty Bevel Gear Set 38T/13T (Z-G0071)
  • Aluminum Diff Case for D44 and Axial Axles (Z-S1683)
  • Heavy Duty Differential Locker (Z-S1682)

Replacement Hardware:

  • 2x M4 Lock Nuts (Z-S0620)
  • 6x Metal Shield Bearing 5x11x4mm (Z-S0683)
  • 4x Metal Shield Bearing 10x15x4mm (Z-S0837)

Instruction Manual:


Notes:
  • While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed.
  • Fits Axial Jeep Wrangler Rubicon but you will need Z-S1072Z-S0923 and Z-S1105
