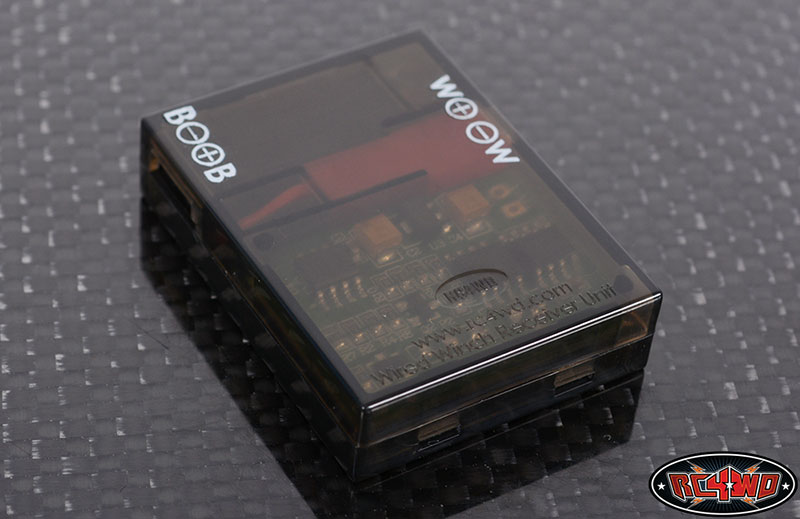

RC4WD Wired Winch Control Unit

 RC4WD Wired Winch Control Unit

This is the wired Winch Control Unit offered to allow operation function from your radio and receiver. This will allow you to control a winch with your remotes third channel.



Specifications:

Receiver

• Small Compact Size
• Operating Voltage 6V to 11.1V
• Requires 3 position Third Channel

• Easy Plug and Play
• Instruction Included
• Length: 1.6in / 41mm
• Width: 1.2in / 31mm
• Height: 0.39in / 10mm
• Weight: 0.35oz / 10g


• Length: 6in / 150mm
• Wires Weight: 0.14oz / 4g

• 30 Day Warranty
• Manufactured by RC4WD

What's Included:

• 1x Wired Control Unit

• 1x 6" Receiver/Receiver Power Wire
• 1x 6" Receiver/Winch Control Wire

• Warn 1/10 9.5cti 1/10 (Z-S1079)
• For Shorter Wires 3" Wiring Pack (Z-S1001)

• For Longer Wires 9" Wiring Pack (Z-S0999)

Replacement parts:

• Spare Empty Case for Wired Control Unit (Z-S0808)

• You will need a radio with a third channel to operate this controller.

• Your third channel needs to be a three position switch (on/off/on).
• If your radio does not have a three position switch, you can purchase a wireless controller unit. (Z-S1092)

• This product is not waterproof. You may be able to waterproof on your own, but this will void the manufactures warranty.
• For Warnings, Precautions, Safety and Damage Limits: Click Here
• If for any reason you cut the wires on the control box, this will void the warranty.
• Some Lipo battery voltage can be higher than 11.1 volts. Please be careful and check voltage before using your battery.

Instruction Manual:

• For Detailed Setup. Click Here
