CC Mamba Micro X ESC 12.6V Wasserdicht

Art.Nr.:
CC-010-0147-00
Lieferzeit:
nicht lagernd nicht lagernd (Ausland abweichend)
79,90 EUR
inkl. 19% MwSt. zzgl. Versand

  Extreme Power and Control in an Extremely Small Space

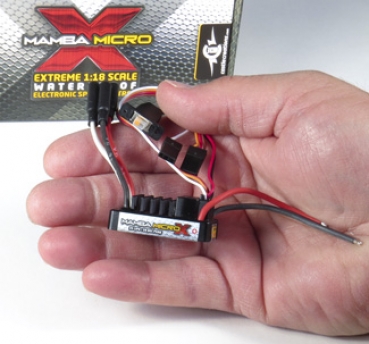

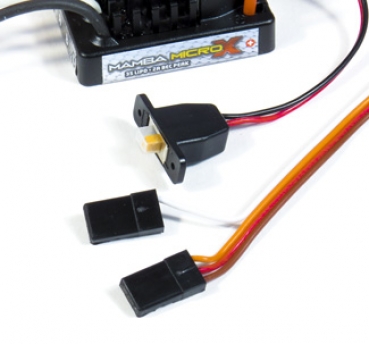

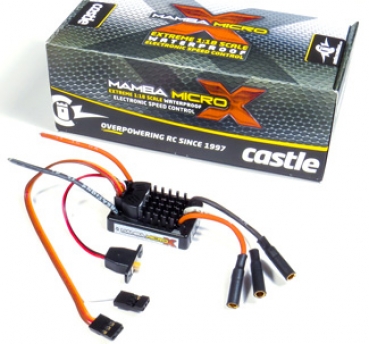

The Mamba Micro X puts Extreme Power, Extreme Control and Extreme Fun in a relatively small footprint – small enough for most 1:18th scale vehicles. The waterproof Micro X is suitable for 2WD or 4WD vehicles over 1.5 lbs and up to 2.25 lbs. The Micro X and one of our “mighty-mite” 0808 brushless motors is simply an awesome brushless power system upgrade for Mini-LST, Half-Eight, Mini-Quake and Spyder vehicles. In following with the other Mamba X Series ESCs, the new Mamba Micro X features even more extreme performance and capabilities than the model it replaces. The new Micro X receives a heavy-duty BEC (battery eliminator circuit) to handle today’s high-draw digital servos and also features a programmable Auxiliary Wire (AUX) that allows the user to make “on-the-go” adjustments to several settings, such as torque control and max throttle, directly from a compatible transmitter. This allows you to fine-tune the performance of the Micro X to meet changing driving conditions.

Sensor Support (with optional Sensor Harness)
New to the Micro X is the ability to run sensored brushless motors with the purchase of an optional Sensor Harness from Castle Creations. Now, a whole new group of R/C enthusiasts will be able to enjoy the power, control and fun of a Castle power system in your vehicle. The Micro X is cable of running on 2S up to 3S LiPo power with a highly-efficient heat sink design to keep you running cool, even when pushing it hard in mud, sand and other heavy power applications.

Castle Link: Industry-Leading Software Functions and Tuning
Small but mighty, the Micro X can be “custom tuned” via Castle’s industry-leading Castle Link software. The Micro X includes a coupon for a free Castle Link USB device. This allows access to the full programming suite of adjustable settings so that enthusiasts can tune and tweak the performance of their Micro X-equipped vehicle to their preference.

Castle Link adjustable settings for the new Micro X include:

  • Throttle
  • Braking Curve
  • Drag Brake
  • Auto LiPo Cutoff
  • Punch Control
  • Reverse Type
  • Motor Type


Mamba Micro X ESC Specs

Part Number:

010-0147-00
Input Voltage Range: MIN: 2S LiPo; MAX: 3S LiPo, 12.6V
BEC Specifications: Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
Operating Environment: Waterproof* design allows for use in nearly any environment. (See Product Use Statements)
Brake: Proportional
Reversible: Yes - with lockout
On/Off Switch: Yes, waterproof
ESC Cooling Fan: No
Size: 1.61”in x 0.75”in x 1.10” inches (4.1 x 1.9 x 2.8 cm)
Weight (w/o battery connector soldered to ESC): 1.20 oz (34.01 g)
Items Needed for Operation: Battery Connector required, 4mm Castle Connectors are recommended.
Product Use Statements:

*Applying voltages higher than 12.6 volts will cause irreparable damage to your controller, voiding your warranty.

*Recommended battery capacity for 1:18th scale vehicles is 1500mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).

*The Mamba Micro X has 3.5mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.

Application Guidelines:  1:18th scale RC hobby vehicles weighing up to 2.25lbs

Mamba Micro X Gearing Information

4100Kv

5300Kv 8200Kv
Battery 6 cell MIMH 2S LiPo
8 Cell NIMH
3S LiPo 6 cell NIMH 2S LiPo
8 cell NIMH
3S LiPo 6 cell NIMH 2S LiPo
8 cell NIMH
3S LiPo
Pinion Stock, possibly larger Stock or smaller Smallest possible Stock or smaller Stock or smaller Smallest possible Stock or smaller Smallest possible N/A
Spur Stock, possibly larger Stock or larger Stock or larger Stock or larger Stock or larger Largest possible Stock or larger Largest possible N/A
